Solar Panel AIKO Neostar 2P N-type ABC 470W Black Frame 30mm 1500V EVO2, 1.2m lead, 25-yr Warranty (AIKO-A470-MAH54Mw, IEC 61215-2021)
$210.94
feature
• 470W Maximum Power Output
• Up to 23.6% Module Efficiency
• 25-year Product Warranty
1 in stock

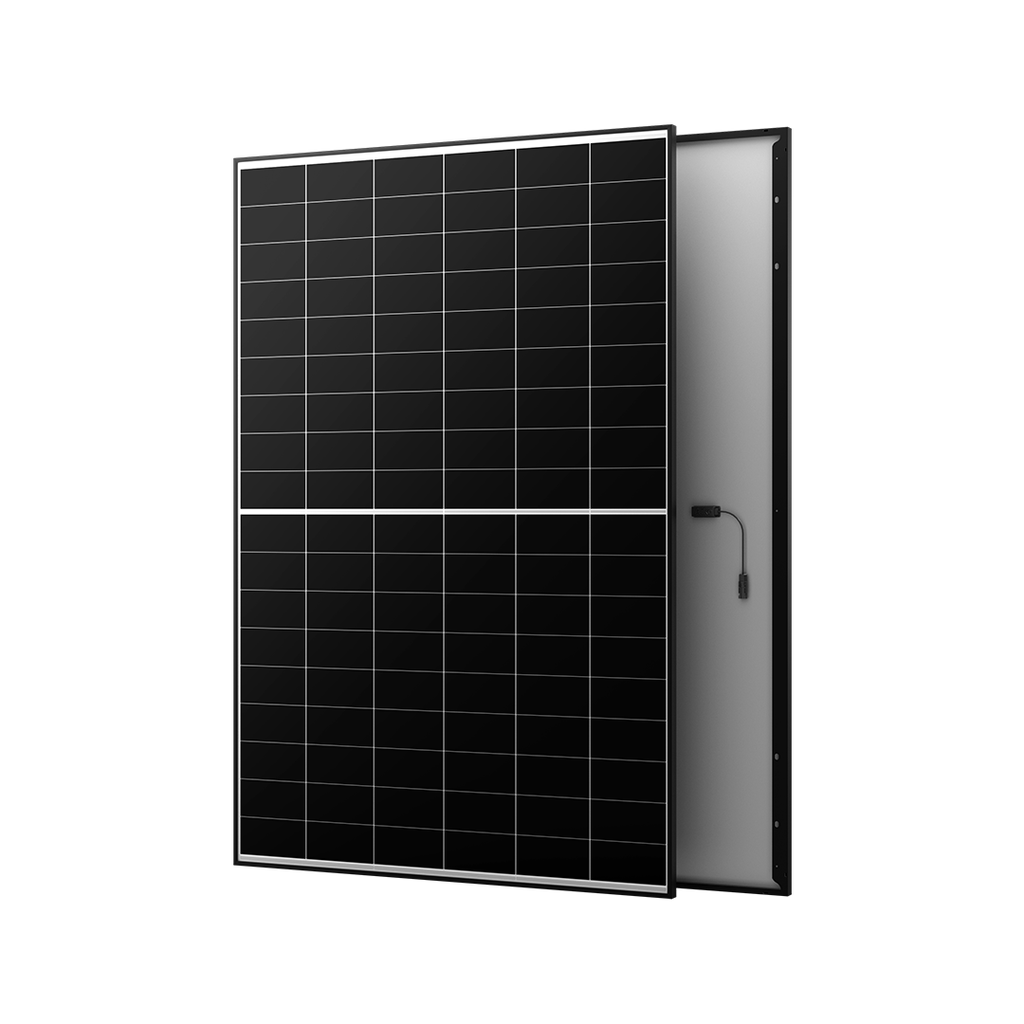

AIKO 470W Neostar 2P N-Type Solar Panel
Second generation comprehensive upgrade | Higher power output | Lower BOS | Quality aesthetics
The AIKO 470W Neostar 2P is a high-efficiency solar panel featuring advanced cell optimisation technology. With its N-Type ABC cells, it delivers superior performance, enhanced durability, and increased energy yield, making it an ideal choice for both residential and commercial solar installations.
The AIKO 470W Neostar 2P (AIKO-A470-MAH54Mw) Panel was recognised as the Best Panel at Intersolar 2023.
- Efficiency: up to 23.8%
- Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
- Premium warranty: 25-year product warranty and 30-year performance warranty
- Better temperature coefficient: -0.26%/°C
- Maximizing the installation capacity, Partial shading optimization
- Lower O&M cost
- High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate.
- The same DC capacity with connection points reduced by about 5.5%.
More about AIKO:
Founded in 2009, AIKO is a global-leading clean energy technology company. Their business mainly focuses on the manufacturing of photovoltaic products and all-in-one solutions for various scenarios, including solar cells, ABC (All Back Contact) modules, inverters, battery storage, and energy management systems, etc. With the mission of "Empowering Global Energy Transition towards a Carbon-free Society", AIKO are committed to pursuing ultimate technological innovation and speeding up the process to reach carbon neutrality.
Product Specifications
| 470W Neostar 2P N-Type Solar Panel | |
| Cell Type | N-Type ABC Cells |
| Number of Cells | 108 Cells (6 x 18) |
| Front Glass | 3.2 mm tempered glass |
| Frame | Black Anodized Aluminium |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Cables | 4mm² (IEC), 12 AWG (UL), 1200mm |
| Connector | MC4-Evo2 |
| Weight | 21.5kg |
| Module Dimensions | 1757 x 1134 x 30mm |
| Electrical Data (STC) | |
| Nominal Maximum Power – PMAX | 470W |
| Optimal Operating Voltage – VMP | 33.90V |
| Optimal Operating Current – IMP | 13.87A |
| Open Circuit Voltage – Voc | 40.89V |
| Short Circuit Current – Isc | 14.61A |
| Module Efficiency | 23.6% |
| Temperature Ratings | |
| Temperature Coefficient of Isc | +0.05%/ºC |
| Temperature Coefficient of Voc | +0.22%/ºC |
| Temperature Coefficient of Pmax | +0.26%/ºC |
| Installation Guide | |
| Operating Temperature | -40ºC ~ +85ºC |
| Maximum Series Fuse Rating | 25A |
| Maximum System Voltage | 1500V DC (IEC) |
| Protection Class | Class II |
| Voc and Isc Tolerance | ±3% |
| Maximum Static Loading | Front: 5400Pa Back: 2400Pa |
| Fire Rating | IEC Class C |
| Warranty | 25-Year Product Warranty, 30-Year Performance Warranty |
