Solar Panel TRINA VERTEX S+ N-Type Dual Glass 440W Black 30mm EVO2 Landscape 25-yr Warranty (TSM-440NEG9R.28, IEC 61215-2021)

$208.12

feature

440W Maximum Power Output

Up to 22% Module Efficiency

25-year Product & 30-year Power Warranty

1 in stock

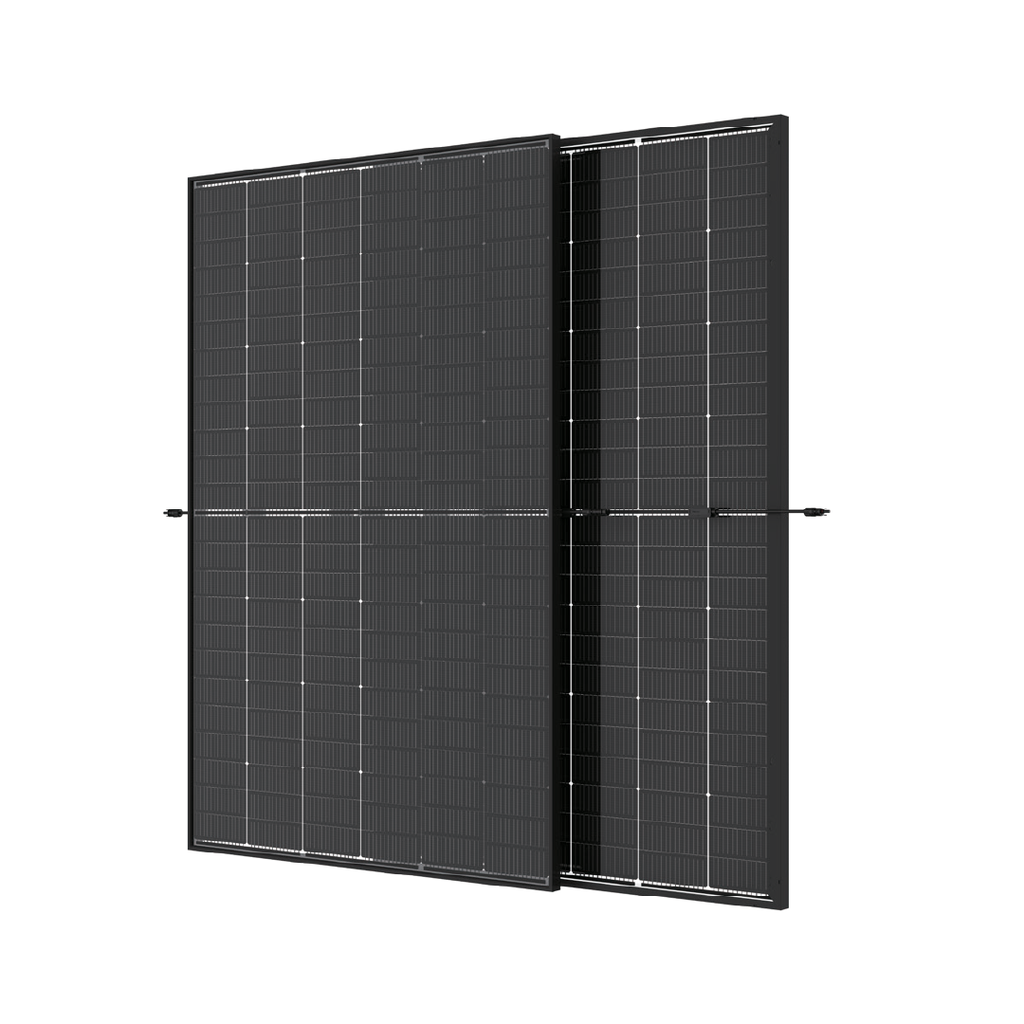

Trina Solar 440W Vertex S + Dual Glass N-Type Panel
Small in Size, Big on Power

Up to 440W, 22.0% module efficiency with higher density interconnect technology
Multi-busbar technology for better light trapping, lower series resistance, improved current collection & enhanced reliability
Reduce installation cost with higher power bin & efficiency
Boost performance in warm weather with a low-temperature coefficient (-0.30%) & operating temperature
Transparent Dual-Glass Design

Transparent design with aesthetic appearance, 3.2% transparency
Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
Fire class rating C, weather resistance, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity areas and harsh environment
Ultra-low Degradation, Longer Warranty, & Higher Output

First-year degradation 1% & annual degradation at 0.4%
25 Year product & 30 year power warranty
Universal Solution

Easy for integration, designed for compatibility with existing mainstream inverters & diverse mounting systems
Perfect size & low weight for handling & installations
Most valuable solution on low load capacity rooftops
Mechanical performance up to 5400 Pa positive load & 4000 Pa negative load

More about Trina Solar:

Founded in 1997, Trina Solar is the world’s leading PV and smart energy solution provider. The company engages in PV products R&D, manufacture and sales; PV projects development, EPC, O&M; smart micro-grid and multi-energy complementary systems development and sales, as well as energy cloud-platform operation.

In 2019, Trina Solar was rated the World’s Top “Bankable” PV Module Manufacturer by Bloomberg New Energy Finance. Trina Solar won the China Industry Awards in 2018 and became the first PV company to receive this honour. The Company has been ranked as one of the top 3 PV module manufacturing companies in the world.

Product Specifications

440W Vertex S+ Dual Glass Solar Panel
Solar Cells N-Type Monocrystalline
No. of Cells 144 Cells
Module Dimensions 1762 x 1134 x 30mm
Weight 21kg
Front Glass 1.6 mm, High Transmission, AR Coated Heat Strengthened Glass
Encapsulant Material POE/EVA
Back Glass 1.6 mm, High Transmission, Heat Strengthened Glass
Frame 30mm, Anodized Aluminium Alloy, Black
Junction Box IP68 Rated
Cables Photovoltaic Technology Cable 4.0mm2, Portrait: 350/280 mm, Length can be customised
Connector Stabuli MC4 EVO2 / Trina Solar TS4 Plus / Trina Solar TS4
Electrical Data (STC)
Peak Power Watts – PMAX 440W
Binning Tolerance – PMAX 0 ~ +5W
Maximum Power Voltage – VMPP 44.0V
Maximum Power Current – IMPP 10.01A
Open Circuit Voltage – Voc 52.2V
Short Circuit Current – Isc 10.67A
Module Efficiency 22%
Operational Temperature -40ºC ~ +85ºC
Maximum System Voltage 1500V DC (IEC)
Maximum Series Fuse Rating 25A
Warranty 25-year Product Workmanship Warranty & 30-year Power Warranty
