INV-GROWATT-MIN-5KW-TLX (MIN5000TL-X) INV-GROWATT-MIN-5KW-TLX (MIN5000TL-X)

$1,000.00

1 in stock

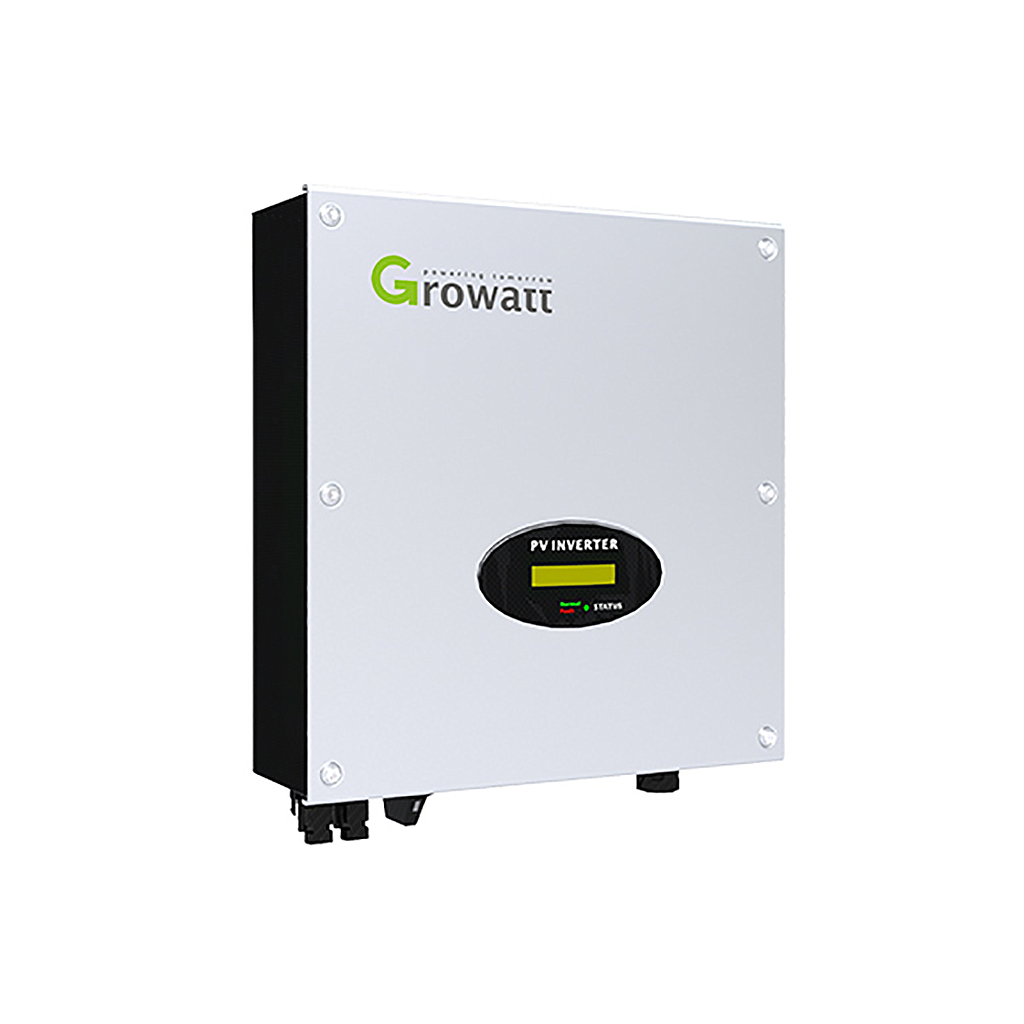

Growatt 5000TL3-S:

Growatt 5000TL3-S is an ideal solar system solution for private homes, businesses & small commercial sites. Modules can be installed at different sides of the roof and installed for a three phase system.

Features:

- DC input voltage up to 800V

- Maximum efficiency of 97.9%

- Internal DC switch

- Transformerless

- Compact design

- Multi MPP controller

- MTL - String

- Bluetooth / RF technology / Wi-Fi

- Sound control

- Easy installation

- Standard 5 years warranty plus 5 years free warranty extension when you register online - click here to register

*Please note: Growatt inverters are a non stocked item and can be ordered in upon request

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Growatt:

Growatt was established in 2011 by a group of pioneers in the global PV industry with a vision to build a green and sustainable future. Within a decade's time, the company quickly grew to become a global leading distributed energy solution provider thanks to its exceptional product quality and service.

Today, Growatt is considered a top residential inverter supplier and also one of the world's top four suppliers of PV inverters and storage hybrid inverters, according to S&P Global Commodity Insights and Wood Mackenzie. In addition, Growatt is recognized as a top brand by customers across global markets for solar inverter and energy storage according to surveys and analysis carried out by EUPD Research.

Manual_TROUBLE-SHOOTING-GUIDE

Datasheet_GROWATT-5000TL3

Product Specification

Brand:





 Growatt




Model:





 5000TL3-S




Recommended maximum PV power (Wp):





 5200




Maximum DC voltage (VDC):





 800




Rated AC output power (W):





 5000




Max AC apparent power (VA):





 5000




Maximum efficiency:





 97.9%




Weight (kg):





 35




Size (mm) WxHxD:





 560x433x200




Ambient temperature (°C):





 -25 – +60




Warranty:





 5+5 years
