Battery Sungrow 5kWh Rechargeable Li-ion Battery Module (SMR050)

$4,232.80

feature

• 5kWh High Voltage LFP Battery

• Stackable up to 8 Modules per Unit

• 10-year Parts & Labour Warranty

1 in stock

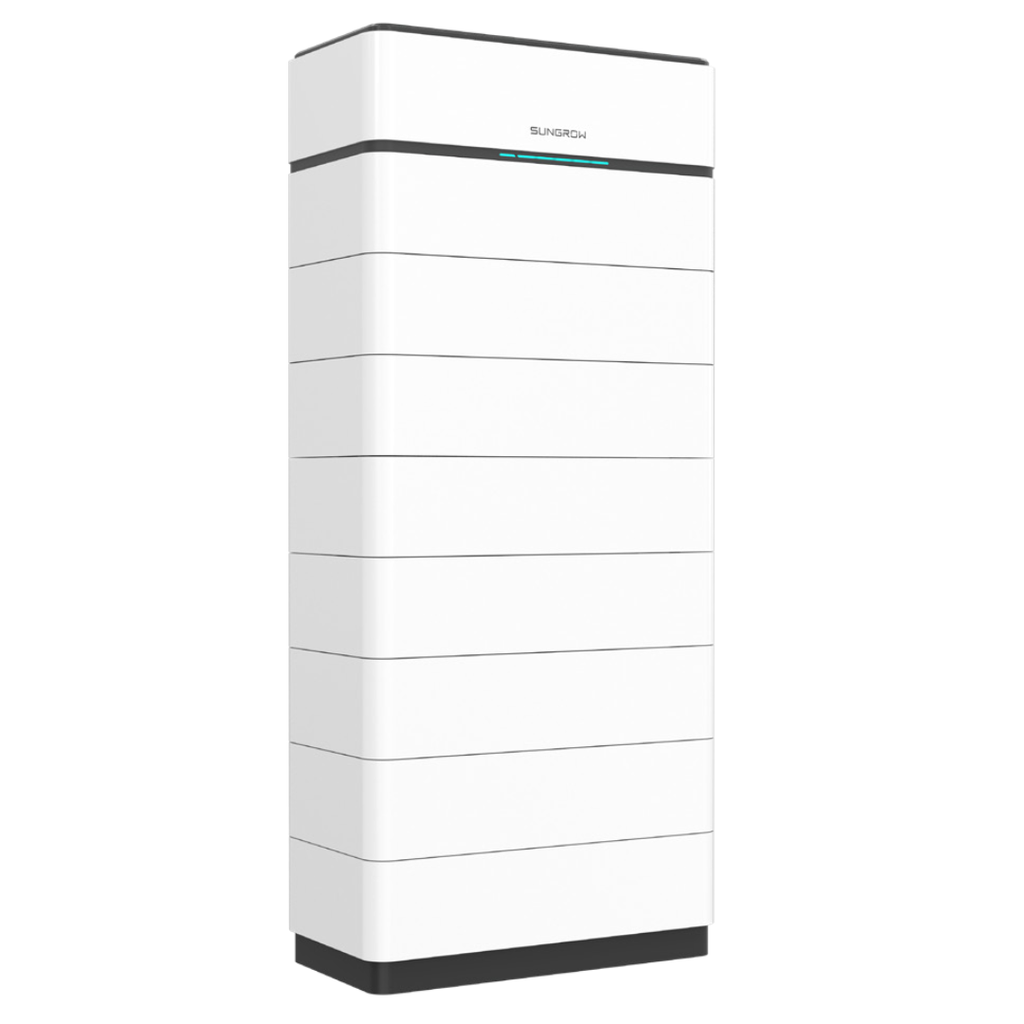

Sungrow 5kWh HV LFP Battery

Sungrow’s SBH Series presents a new era in energy storage solutions, combining cutting-edge technology with unmatched performance..

Each 5kWh battery module offers exceptional reliability and efficiency, ensuring a seamless integration into residential and commercial energy systems. With the flexibility to support a minimum of 4 modules, up to a maximum of 8 per stack depending on the connected inverter, and the ability to parallel up to 4 stacks (totaling 160kWh), the SBH Series provides scalable energy storage solutions tailored to your specific needs.

With up to 50A continuous charge and discharge current capabilities, the SBH Series delivers consistent power output, ensuring reliable operation even during peak demand periods

Description

  • Minimum 4x modules per stack. Max. 5x modules for SH5.0/6.0RS, max 6x modules for SH8.0/10RS, max 7x modules for SH5.0/10RT and max 8x modules for SH15/20/25T.Minimum 4x modules per stack. Max. 5x modules for SH5.0/6.0RS, max 6x modules for SH8.0/10RS, max 7x modules for SH5.0/10RT and max 8x modules for SH15/20/25T.
  • Frosted PC lens diffuse bright white lighting with no shadow.Up to four equal stacks can be connected in parallel to a single inverter (SJR050-04 Combiner required)
  • Requires 1 x SBH Accessory Kit per tower (sold separately)
  • Lithium iron phosphate battery
  • 5kWh maximum storage capacity
  • 50A continuous charging and discharging
  • Stackable & modular design allows for easy expansion
  • 10 Years standard warranty
  • Dimensions: 675 x 160 x 350 mm
  • Weight: 45kg

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Sungrow:

Sungrow Power Supply Co., Ltd. is one of the world’s most bankable inverter brands with over 405 GW installed worldwide as of June 2023. Founded in 1997 by University Professor Cao Renxian, Sungrow is a leader in the research and development of solar inverters with the largest dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications, as well as internationally recognized floating PV plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With a strong 26-year track record in the PV space, Sungrow products power over 150 countries worldwide.

Manual_SBH100-400-UEN-Ver11-202306

Datasheet_SBH200_250_300_350_400_V2_EN

Product Specifications

Technical properties 8 modules
Battery type LiFePO4 Prismatic Cell
Battery module 5.0kWh, 45kg
Energy (useable)* 40.0 kWh
Nominal voltage 563.2 V
Nominal power** 28.16 kW
Operating voltage 475.2V-642.4V
Max. charge/discharge current: continuous 50 A
Depth of discharge Max. 100 % DOD ( settable )
Display SOC indicator , Status indicator
Communication interface CAN
Over/under voltage protection Yes
Over current protection Yes
Over/under temperature protection Yes
DC breaker Yes
Dimensions (W*H*D) 675 * 1540 * 350 mm
Weight 376 kg
Installation location Indoor / Outdoor
Mounting method Floor stand
Operating ambient temperature range Charge：0 ℃ – 50 ℃ Discharge：-20 ℃ – 50 ℃
Degree of protection IP55
Allowable relative humidity range 0 % – 95 % no condensing
Max. operating altitude Max. 2000 m
Cooling method Natural convection
Certificates CE, IEC 62619, IEC 62040, UN 38.3, VDE 2510-50, IEC 62477, IEC 63056
Warranty*** 10 Years
Country of manufacture China
